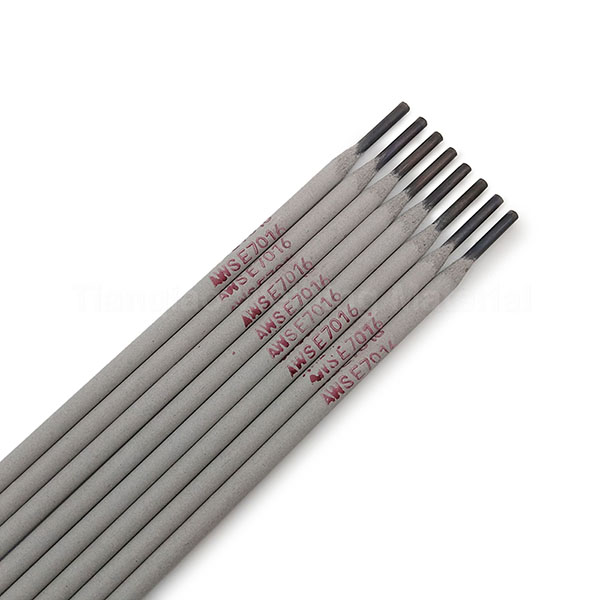

Welding Electrode J506 E7016
Welding electrode J506 E7016 for low alloy steel
🛠️ Applications
It is suitable for the welding of medium carbon steel and low alloy steel structure, such as Q345, 09Mn2Si, 16Mn, and so on.
✨ Characteristics
💎
Coating Type
J506 (E7016) is a low hydrogen potassium type basic coated electrode.
⚡
Versatility
Both AC and DC can be used and can be all-position welding.
⭐
Performance
Excellent welding performance, stable arc, little spatter, easy slag removal, and good weld appearance.
🛡️
Durability
Weld metal has excellent mechanical properties and crack resistance.
⚠️ ATTENTION & GUIDELINES
- Electrode must be approved by 350-380℃ for 1 hour before welding; dry the electrode when use it.
- The rust, oil, water, and other impurities of the weld must be removed before welding.
- You must use short arc welding; the swings should not be too large; narrow bead welding is appropriate.
- To prevent producing arc porosity, arc plate should be adopted or use return method for arc welding.
📍 Welding Positions
PA
PB
PC
PD
PE
PF
electrode,electrodes,welding,welding electrode,welding electrodes,welding rod,welding rods,welding electrode price,electrode welding,welding rod factory price,welding stick,stick welding,welding sticks,china welding rods,stick electrode,welding consumables,welding consumable,China electrode,welding electrodes China,carbon steel welding electrode,carbon steel welding electrodes,welding electrode factory,Chinese factory welding electrode,China welding electrode,China welding rod,welding rod price,welding supplies,wholesale welding supplies,global welding supplies,arc welding supplies,welding material supply,arc welding,steel welding,easy arc welding electrode,arc welding electrode,arc welding electrodes,vertical welding electrode,price of welding electrodes,cheap welding electrode,acid welding electrodes,alkaline welding electrode,cellulosic welding electrode,china welding electrodes,factory electrode,small size welding electrodes,welding materials,welding material,welding rod material,welding electrode holder,nickel welding rod,j38.12 e6013,welding rods e7018-1,welding stick electrode,welding rod 6010,welding electrode e6010,welding rod e7018,welding electrode e6011 ,welding rods e7018,welding electrodes 7018,welding electrodes e7018,welding rod 6013,welding rods 6013,welding electrode 6013,welding electrode e6013,6010 welding rod,6010 welding electrode,6011 welding rods,6011 welding electrodes,6013 welding rod,6013 welding rods,6013 welding electrode,6013 welding electrodes,7024 welding rod,7016 welding rod,7018 welding rod,7018 welding rods,7018 welding electrode,7018 welding electrodes,welding electrode e7016 ,e6010 welding rod,e6011 welding rod,e6013 welding rod,e7018 welding rod,e6013 welding electrode,e6013 welding electrodes,e7018 welding electrode,e7018 welding electrodes,J421 welding electrode,J422 welding electrodes,welding electrode J422,wholesale e6010,wholesale e6011,wholesale e6013,wholesale e7018,best welding electrode,best welding electrode J421,stainless steel welding electrode,stainless steel welding rod,stainless steel electrode,SS welding electrode,welding rods e307,welding electrode e312,309l welding rod,316 welding electrode,e316l 16 welding electrodes,cast iron welding electrode,aws Eni-Ci,aws Enife-Ci,surfacing welding,hard facing welding rod,hard surfacing welding,hardfacing welding, welding, welding,vautid welding,bohler welding,lco welding,miller welding, welding, welding,flux powder,welding flux,welding powder,welding electrode flux material ,welding electrode flux,welding electrode material,tungsten electrode,tungsten electrodes,welding wire,argon arc welding,mig welding,tig welding,gas arc welding,gas metal arc welding,electric are welding,electric arc welding,arc welding rods,carbon arc welding,e6013 welding rod uses,types of welding electrodes,flux core welding,types of electrodes in welding,welding supply,welding metal,metal welding,shielded metal arc welding,aluminum welding,welding aluminum with mig,aluminum mig welding,pipe welding,welding types,types of welding rod,all types of welding,welding rod types,6013 welding rod amperage,welding rods electrodes,welding electrode specification ,welding electrode classification ,welding electrode aluminium ,welding electrode diameter ,mild steel welding,stainless steel welding,e6011 welding rod uses,welding rods sizes,welding rods price,welding electrodes size,aws e6013,aws e7018,aws er70s-6,stainless steel welding wire,stainless steel mig welding wire,tig welding wire,low temp welding rod,6011 welding rod amperage,4043 welding rod,cast iron welding rod,western welding academy,sanrico welding rods,aluminium welding,aluminium welding rod,welding products,welding tech,welding factory
❓ Frequently Asked Questions
What are the main applications of J506 E7016 electrodes?
J506 E7016 is primarily designed for welding medium carbon steel and low alloy steel structures, such as Q345, 16Mn, and 09Mn2Si.
Does this welding electrode support AC current?
Yes, J506 E7016 is a versatile electrode that can be used with both AC (Alternating Current) and DC (Direct Current) power sources.
What is the recommended pre-welding treatment for J506?
Electrodes must be baked at 350-380℃ for approximately 1 hour before use to ensure they are dry and to maintain optimal performance.
What type of coating does the E7016 electrode have?
It features a low hydrogen potassium type basic coating, which contributes to excellent crack resistance and mechanical properties.
How can I prevent arc porosity during welding?
To avoid arc porosity, it is recommended to use an arc plate or the return method during arc initiation, and always use a short arc technique.
Can J506 be used for vertical or overhead welding?
Yes, J506 E7016 is suitable for all-position welding, including flat (PA), horizontal (PC), vertical (PF), and overhead (PE) positions.
