It is suitable for the welding of carbon steel and low alloy steel structure, such as Q345, and so on.
Features
E7018 is basic coated iron powder low potassium hydrogen type electrode. Both AC and DC can be used and can be all-position welding. It can reach excellent welding performance, good arc stiffness, little spatter, easy slag removal and good weld appearance, high deposition efficiency, and can reduce welding layers.
Welding Positions & Detection
Positions: PA, PB, PC, PD, PE, PF
X-ray flaw detection: Ⅰ level
Deposit Composition (Quality Score): %
Items
C
Mn
Si
S
P
Ni
Cr
Mo
V
Requirements
≤0.10
0.85-1.40
≤0.65
≤0.030
≤0.035
≤0.30
≤0.20
≤0.30
≤0.08
Typical Results
0.06
1.00
0.30
0.015
0.020
0.030
0.035
0.005
0.004
Mechanical Properties
Items
Tensile Strength Rm/MPa
Yield Strength Rel/Rp0.2 MPa
Elongation A/%
Charpy V-Notch KV2(J)-30℃
Requirements
490-660
≥400
≥22
≥80
Typical Results
590
480
28
160
Typical Operating Procedures (AC, DC+)
Diameter (mm)
2.5
3.2
4.0
5.0
Current (A)
60-100
100-150
170-210
210-250
Attention
Electrode must be approved by 350-380℃ for 1 hour before welding, dry the electrode when use it.
The rust, oil, water and other impurities of the weld must be removed before welding.
Must use short arc welding, the swings should not be too large, narrow bead welding is appropriate.
To prevent producing arc porosity, arc plate should be adopted or use return method for arc welding.

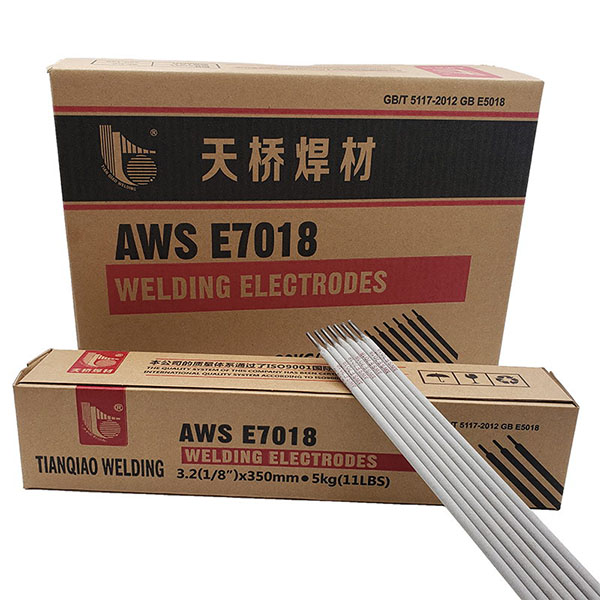

Packaging & OEM/ODM
Packaging: 5kg/box, 4boxes/carton, 20kgs/carton, 50cartons/pallet. 21MT -26MT per 1X20" FCL.
OEM/ODM: We support OEM/ODM and could make packaging according to your design, please contact us for detail discussion.
Frequently Asked Questions
Q1: What type of electrode is E7018?A: E7018 is a basic coated iron powder low potassium hydrogen type electrode, suitable for high-quality carbon steel and low alloy steel welding.
Q2: Can E7018 be used for all welding positions?A: Yes, it is designed for all-position welding, including flat, horizontal, vertical, and overhead positions.
Q3: Do I need to dry the electrodes before use?A: Yes, for optimal performance and to prevent moisture issues, electrodes should be baked at 350-380℃ for 1 hour before welding.
Q4: What are the main benefits of using E7018?A: It offers excellent welding performance, good arc stiffness, minimal spatter, easy slag removal, and superior weld appearance with high deposition efficiency.
Q5: Is this electrode compatible with both AC and DC power?A: Yes, it is versatile and can be used with both AC and DC+ (Direct Current Electrode Positive) power sources.
Q6: Do you provide custom packaging?A: Yes, we support OEM/ODM services and can customize the packaging based on your specific design requirements.
