China High manganese steel surfacing electrode D256 AWS: EFeMn-A Supplier, Factory

For cladding all kinds of crushers, high manganese rails, bulldozers and other parts which are vulnerable to impact and die damage.

Product Description

High Manganese Steel Surfacing Electrode D256 (AWS: EFeMn-A)

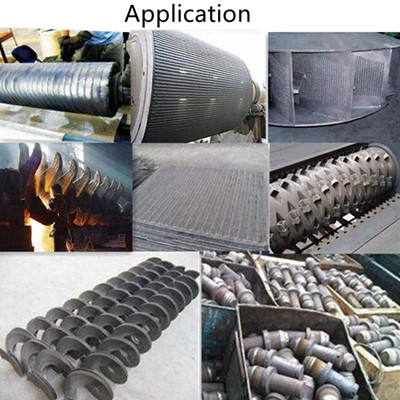

Applications
  • Perfect for surfacing welding of various types of crushers.
  • Ideal for high manganese rail maintenance and repair.
  • Suitable for buckets, bulldozer blades, and heavy-duty earthmoving equipment.
Characteristics

THD256 is a specialized high manganese steel surfacing electrode featuring a low hydrogen potassium coating. It offers exceptional versatility and durability for demanding industrial environments.

  • Dual Power Compatibility: Can be used with both AC and DC power sources (for AC welding, no-load voltage should not be lower than 70V).
  • Superior Durability: The surfacing metal is austenitic high manganese steel, known for excellent work hardening properties, high toughness, and extreme wear resistance.
  • Operational Note: Best results are achieved using small current and narrow welding beads. Hammering or water quenching while red hot is recommended to reduce crack tendency.
Technical Attention & Usage
  • Pre-heating: Before welding, the electrode must be baked at 300-350℃ for 1 hour.
  • Surface Preparation: For worn parts of high manganese steel, ensure the fatigue layer is removed or treated with water toughness/soldered with chromium manganese steel electrodes (e.g., D277).
  • Safety: Due to heavy yellow smoke generated during surfacing, ensure strong ventilation and operate in windswept positions.
Welding Positions

PA, PB, PC, PD, PE, PF

Deposit Composition (Quality Score: %)
Items C Mn Si Others
Requirements ≤ 1.10 11.00 - 16.00 ≤ 1.30 ≤ 5.00
Typical Operating Procedures (AC, DC)

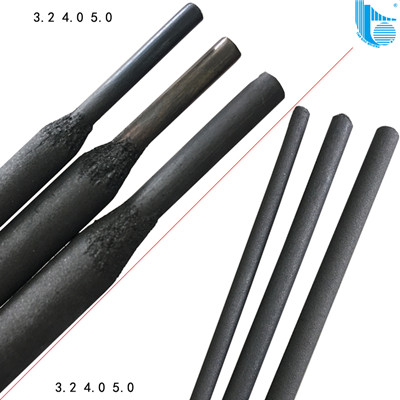

Diameter (mm) 3.2 4.0 5.0
Current (A) 70 - 90 100 - 140 150 - 180
Frequently Asked Questions
What are the primary applications for D256 surfacing electrodes?
D256 is primarily used for surfacing and repairing heavy equipment made of high manganese steel, such as crusher jaws, rail tracks, bulldozer blades, and excavator buckets.
Can I use D256 electrodes with an AC welding machine?
Yes, D256 is compatible with both AC and DC. However, when using AC, ensure the no-load voltage of the welding machine is at least 70V.
Does the D256 electrode require pre-baking?
Yes, for optimal performance and to ensure a low hydrogen environment, the electrode should be baked at 300-350℃ for approximately 1 hour prior to use.
How do I prevent cracking during the surfacing process?
To reduce crack tendency, use a small current and narrow welding beads. It is also recommended to hammer the weld or perform water quenching immediately while the metal is still red hot.
Why is the surfacing metal of D256 highly wear-resistant?
The electrode deposits an austenitic high manganese steel metal. This material is unique because it hardens significantly under impact and friction (work hardening) while maintaining high toughness.
What safety precautions should be taken regarding welding smoke?
The surfacing process produces significant yellow smoke. It is essential to work in a well-ventilated area or in a windswept position to avoid inhaling fumes.
