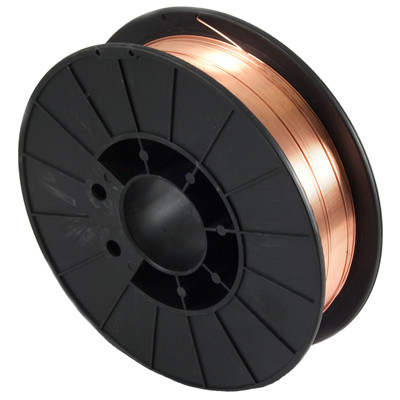

MIG TIG cooper coated solid welding wire ER80s-G
Er80s-g welding wire is 550MPa grade low alloy steel welding wire. CO2 or Ar + CO2 mixed gas protection is used for welding. The welding process of er80s-g welding wire has less spatter, stable arc and beautiful weld formation.
1. Rust, oil, water and other impurities on the weldment must be removed before welding.
2. The welding parameters provided are for reference only, and the user should formulate the welding specifications suitable for production according to the specific situation.
Used for the weathering resistant structure on 500MPa such as vehicle, offshore engineering and more.
WELDING POSITION
PA, PB, PC, PD, PE, PF
TYPE OF CURRENT/GAS
DC+ / CO2
Typical Chemical Composition Of Deposited Metal (wt%)
| C | Mn | Si | P | S | Cu | Cr | Ni | Mo | V | Others |
| 0.07 | 1.70 | 0.60 | 0.005 | 0.05 | 0.21 | - | - | 0.18 | - | Ti: 0.15 |
Typical Mechanical Properties Of Deposited Metal
| Y.P.(MPa) |
T.S.(MPa) |
E.L.(%) |
I.V.(J) |
| 495 |
590 |
28 |
-40°C / 112 |
electrode,electrodes,welding,welding electrode,welding electrodes,welding rod,welding rods,welding electrode price,electrode welding,welding rod factory price,welding stick,stick welding,welding sticks,china welding rods,stick electrode,welding consumables,welding consumable,China electrode,welding electrodes China,carbon steel welding electrode,carbon steel welding electrodes,welding electrode factory,Chinese factory welding electrode,China welding electrode,China welding rod,welding rod price,welding supplies,wholesale welding supplies,global welding supplies,arc welding supplies,welding material supply,arc welding,steel welding,easy arc welding electrode,arc welding electrode,arc welding electrodes,vertical welding electrode,price of welding electrodes,cheap welding electrode,acid welding electrodes,alkaline welding electrode,cellulosic welding electrode,china welding electrodes,factory electrode,small size welding electrodes,welding materials,welding material,welding rod material,welding electrode holder,nickel welding rod,j38.12 e6013,welding rods e7018-1,welding stick electrode,welding rod 6010,welding electrode e6010,welding rod e7018,welding electrode e6011 ,welding rods e7018,welding electrodes 7018,welding electrodes e7018,welding rod 6013,welding rods 6013,welding electrode 6013,welding electrode e6013,6010 welding rod,6010 welding electrode,6011 welding rods,6011 welding electrodes,6013 welding rod,6013 welding rods,6013 welding electrode,6013 welding electrodes,7024 welding rod,7016 welding rod,7018 welding rod,7018 welding rods,7018 welding electrode,7018 welding electrodes,welding electrode e7016 ,e6010 welding rod,e6011 welding rod,e6013 welding rod,e7018 welding rod,e6013 welding electrode,e6013 welding electrodes,e7018 welding electrode,e7018 welding electrodes,J421 welding electrode,J422 welding electrodes,welding electrode J422,wholesale e6010,wholesale e6011,wholesale e6013,wholesale e7018,best welding electrode,best welding electrode J421,stainless steel welding electrode,stainless steel welding rod,stainless steel electrode,SS welding electrode,welding rods e307,welding electrode e312,309l welding rod,316 welding electrode,e316l 16 welding electrodes,cast iron welding electrode,aws Eni-Ci,aws Enife-Ci,surfacing welding,hard facing welding rod,hard surfacing welding,hardfacing welding, welding, welding,vautid welding,bohler welding,lco welding,miller welding, welding, welding,flux powder,welding flux,welding powder,welding electrode flux material ,welding electrode flux,welding electrode material,tungsten electrode,tungsten electrodes,welding wire,argon arc welding,mig welding,tig welding,gas arc welding,gas metal arc welding,electric are welding,electric arc welding,arc welding rods,carbon arc welding,e6013 welding rod uses,types of welding electrodes,flux core welding,types of electrodes in welding,welding supply,welding metal,metal welding,shielded metal arc welding,aluminum welding,welding aluminum with mig,aluminum mig welding,pipe welding,welding types,types of welding rod,all types of welding,welding rod types,6013 welding rod amperage,welding rods electrodes,welding electrode specification ,welding electrode classification ,welding electrode aluminium ,welding electrode diameter ,mild steel welding,stainless steel welding,e6011 welding rod uses,welding rods sizes,welding rods price,welding electrodes size,aws e6013,aws e7018,aws er70s-6,stainless steel welding wire,stainless steel mig welding wire,tig welding wire,low temp welding rod,6011 welding rod amperage,4043 welding rod,cast iron welding rod,western welding academy,sanrico welding rods,aluminium welding,aluminium welding rod,welding products,welding tech,welding factory
Frequently Asked Questions
What are the primary features of ER80s-G welding wire?
ER80s-G is a 550MPa grade low alloy steel wire known for a stable arc, minimal spatter, and the ability to produce beautiful weld formations.
Which shielding gases are compatible with ER80s-G?
This welding wire is designed for use with CO2 or a mixed gas protection of Argon and CO2 (Ar + CO2).
In what industries is ER80s-G commonly applied?
It is primarily used for weathering resistant structures, including vehicles and offshore engineering projects requiring high strength.
What preparation is required before using ER80s-G?
It is essential to remove all rust, oil, water, and other impurities from the weldment surface to ensure a high-quality weld.
What are the supported welding positions?
ER80s-G supports multiple welding positions including PA, PB, PC, PD, PE, and PF.
What is the mechanical strength of the deposited metal?
The typical yield point (Y.P.) is 495 MPa and the tensile strength (T.S.) is 590 MPa, with excellent impact values even at -40°C.
